· UHF 1x25个频率可变换
· 超低THD和超保真
· 超稳定电路,抗扰能力强,做工精良

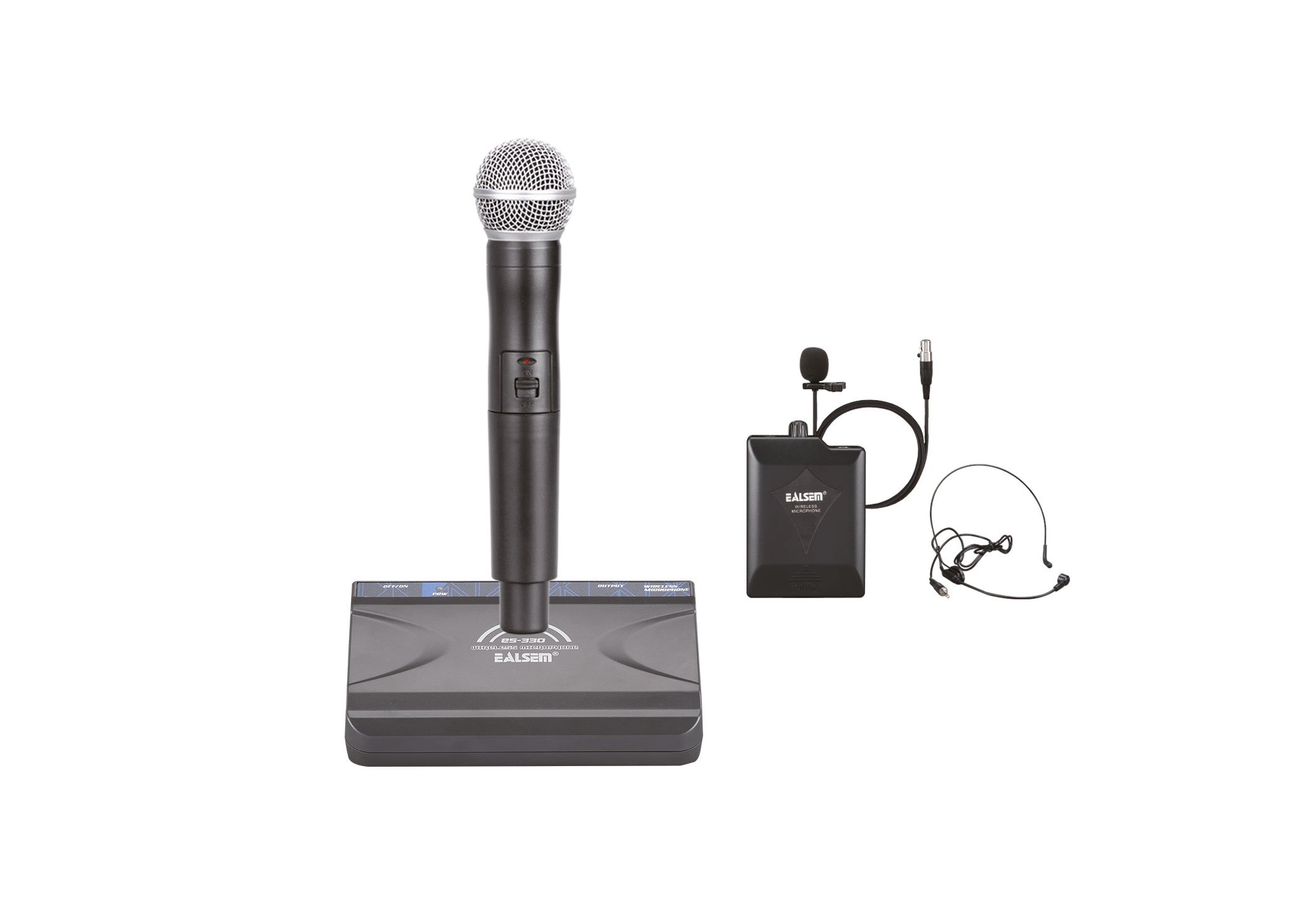

· 可选配手持/领夹式/头戴式
| 频率 / Frequency: | UHF470-610MHz |
| 频道总数 / Channels: | 1x25(Fixed Frequency固定频率) |
| 音频频率响应 / Response: | 50Hz ~ 18KHz |
| 射频产生方式 / RF production: | high-performance integrated IC |
| 射频带宽 / RF bandwidth: | 50MHz |
| 信噪比 / Signal to noise ratio: | > 105dB (A weighted peak) |
| 动态范围 / Dynamic range: | > 100dB |
| 失真 / Distortion: | < 1.0% @ 1KHz |
| 使用温度 / Use temperature: | -18 ~ 50 degrees (Celsius) |
| 有效使用距离 / Working Range: | 50 meters |
| 接收方式 / Receive Mode: | high performance integrated IC |
| 灵敏度 / Sensitivity: | > - 105dB |
| 音频输出方式 / Output: | Mixed / two balanced/ unbalanced output |
| 通道 / Channel: | 1 |
| 射频频率精度 / RF accuracy: | ± 5ppm<10KHz |
| 标称频偏 / Nominal frequency offset: | 25KHz |
| 谐波 / Harmonics: | <- 45dB / c |
| 输出功率 / Output power: | > 10 dB / m |
| 显示方式 / Display: | LCD |
| 消耗电流 / Current consumption: | <150mA @ 3V |
| 供电方式 / Power supply: | AA 1.5V x 2 |
| 使用时间 / Use time: | About 6 hours |
